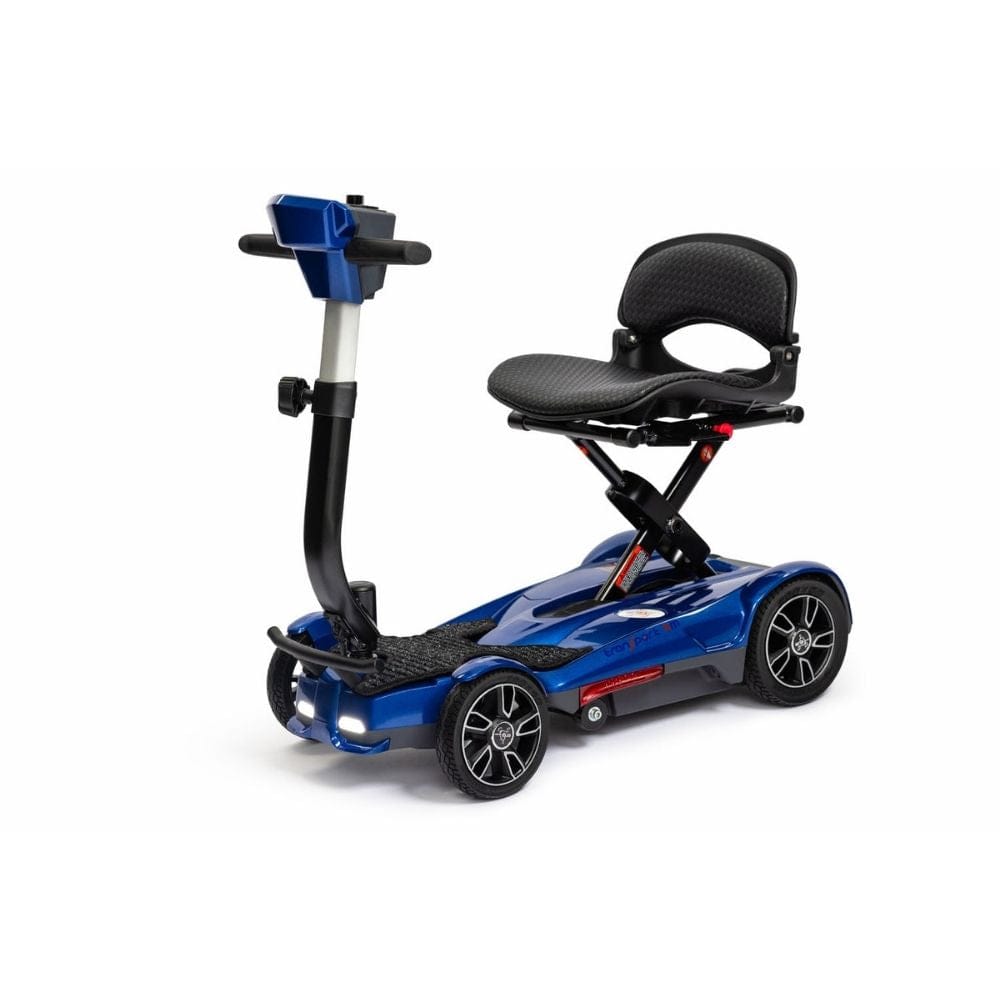

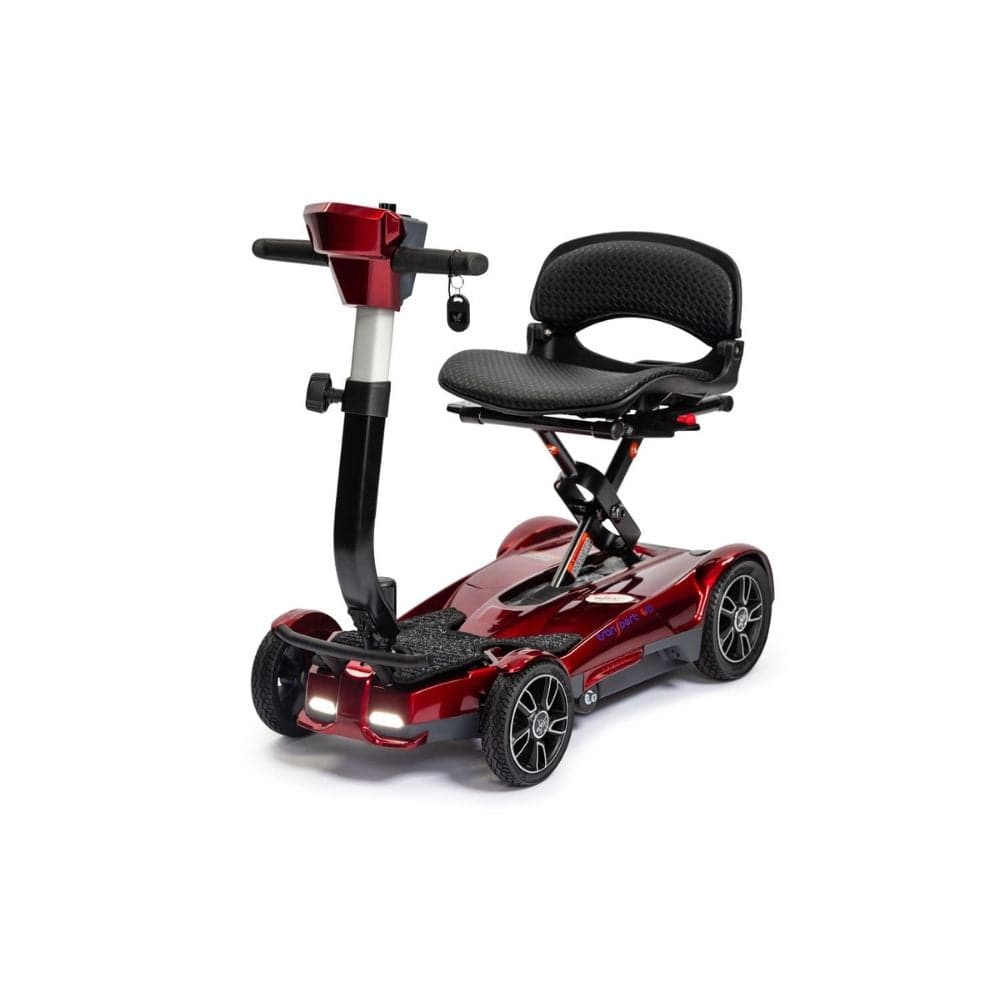

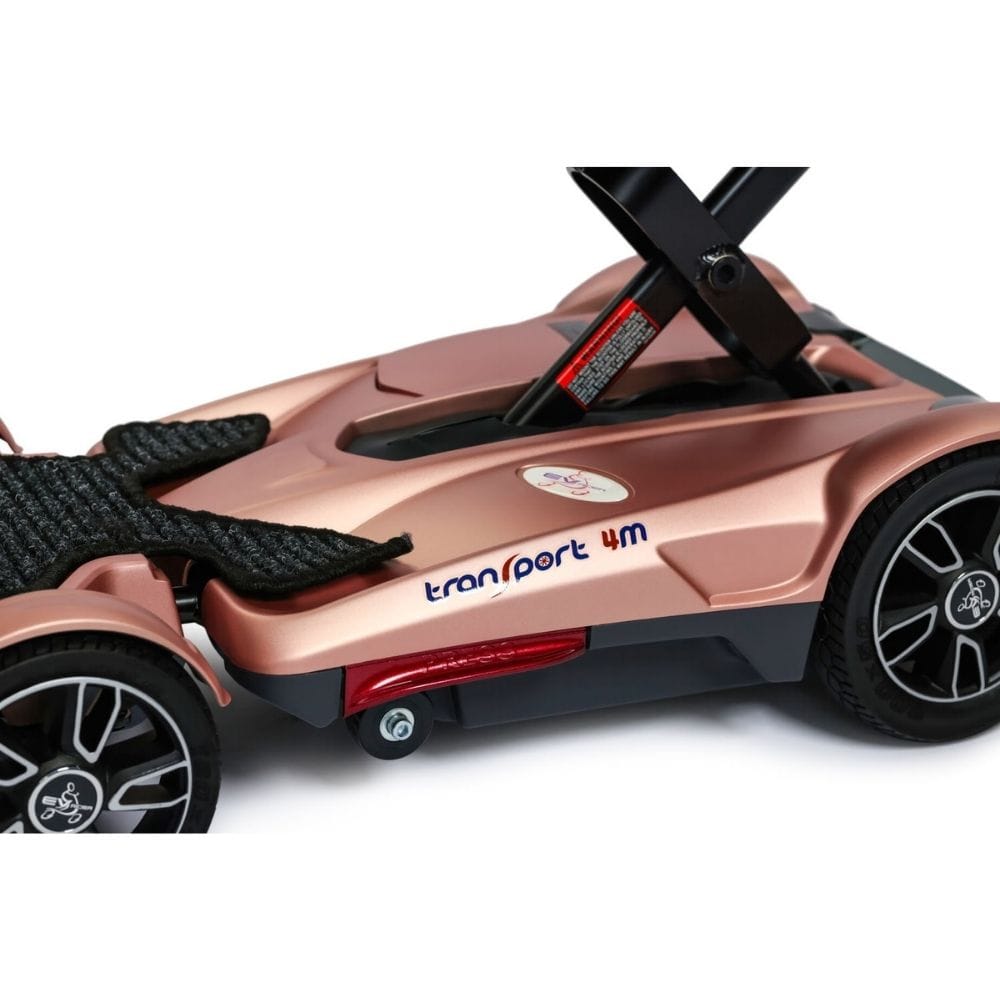

EV Rider Transport 4M Manual Folding Mobility Scooter

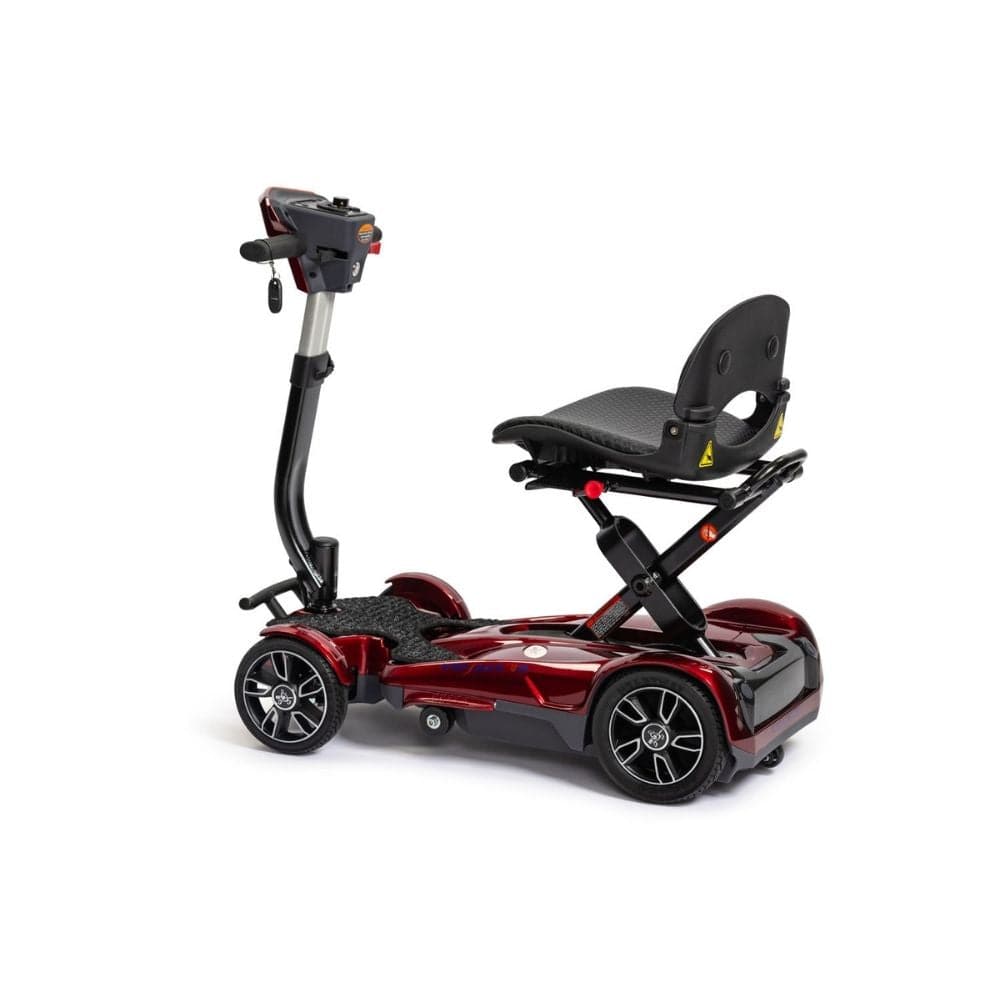

The Transport 4M is a compact and sturdy four-wheel mobility scooter, designed for both stability and convenience. Featuring a sleek design with two-tone rims, it offers a smooth, safe ride thanks to its front steering sensor that reduces speed during turns. The scooter is equipped with automatic LED lights, an electronic key, and a digital display for ease of use. Its adjustable tiller and optional armrests provide customizable comfort, while its airline-approved lithium battery offers portability. Folding in seconds, this scooter weighs 55 lbs and supports up to 250 lbs, making it perfect for travel and daily use.
Features

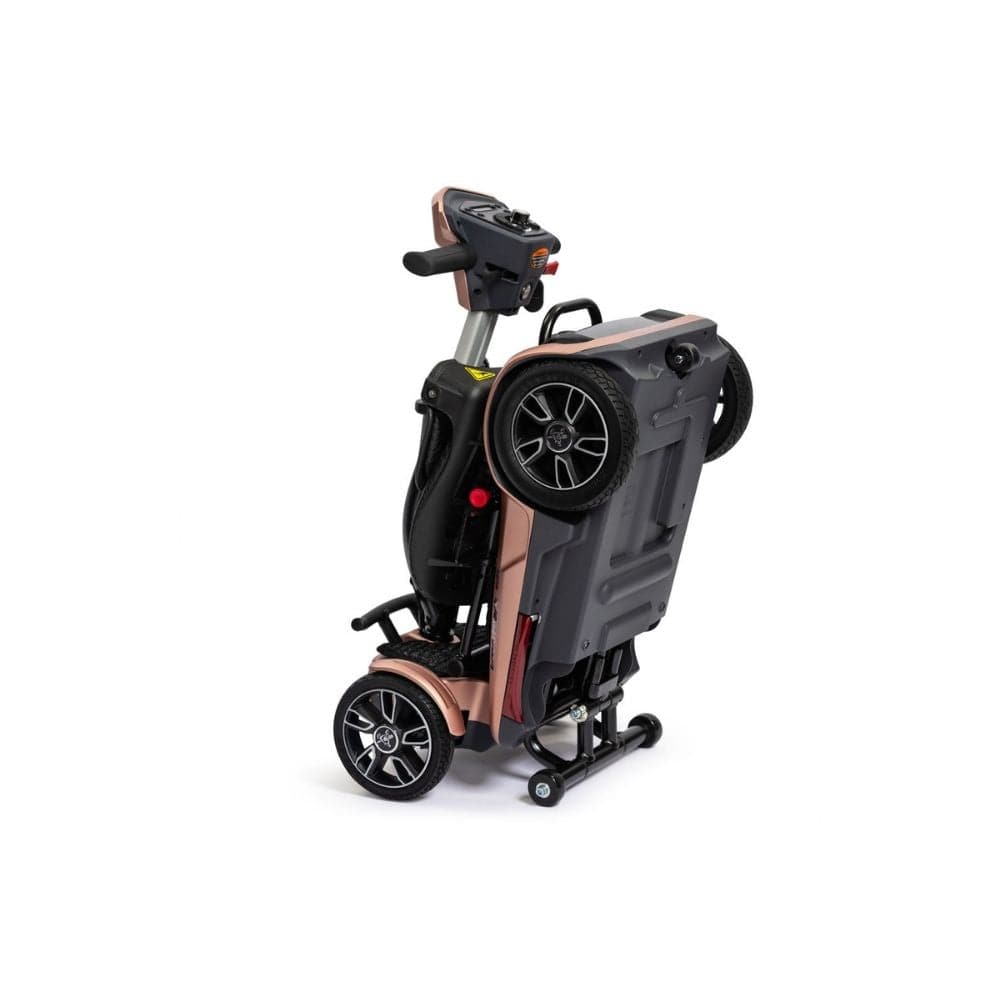

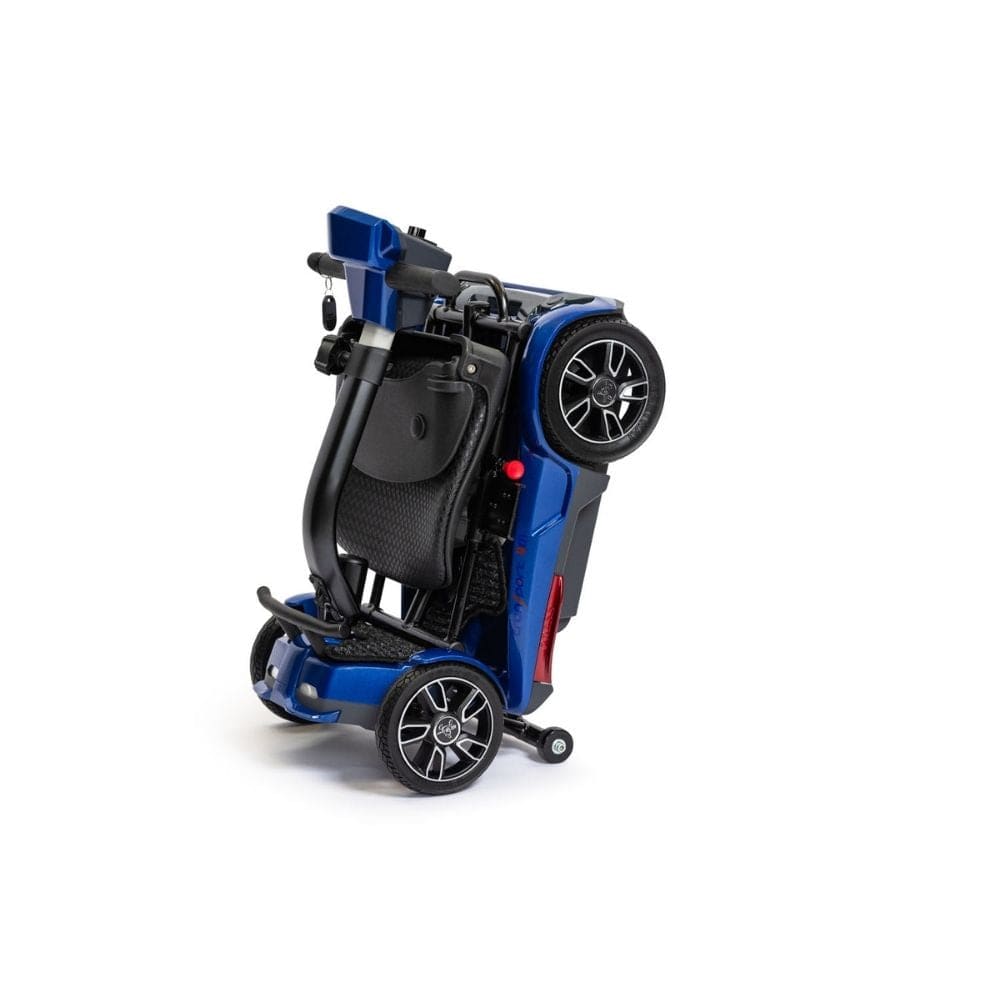

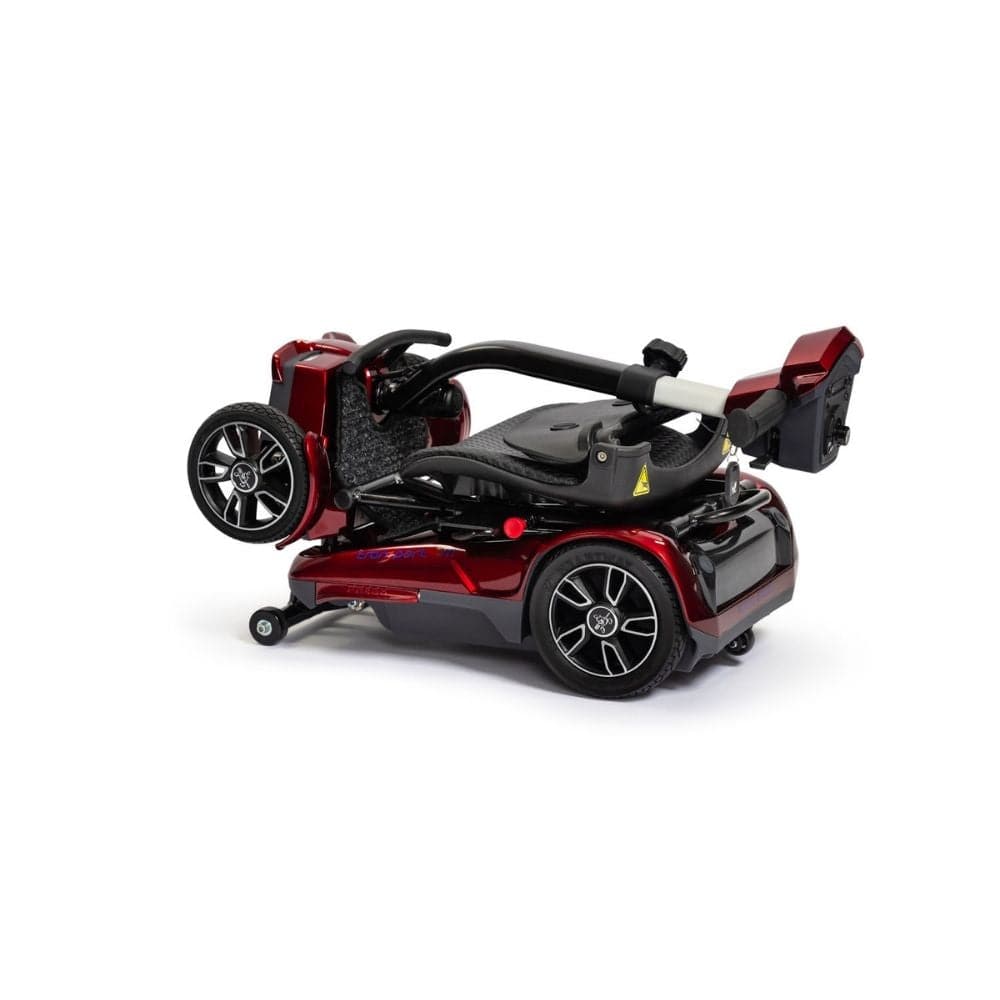

- Folding: Manually folds in seconds for easy car transport; includes a carrying handle when folded.
- Battery: Airline-approved 10.5Ah Lithium-Ion, offering up to 7 miles per charge.

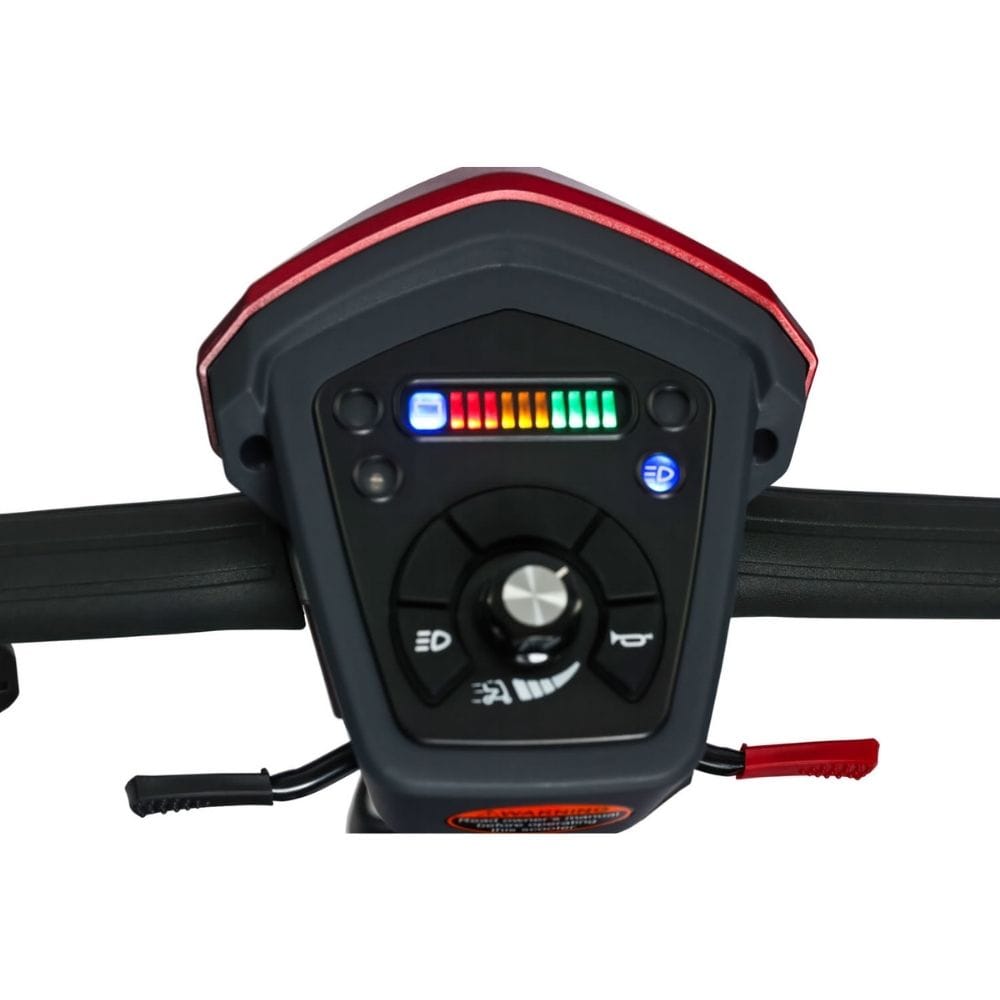

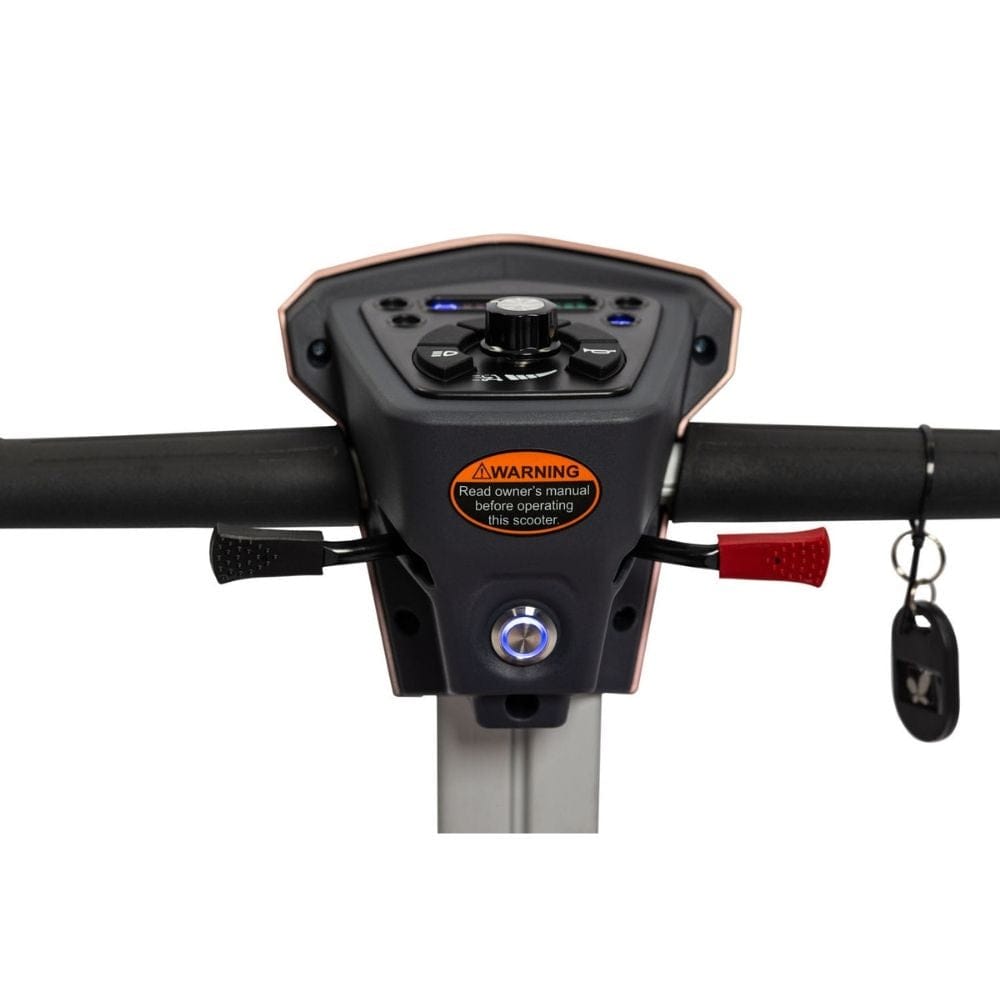

- Controls: Digital display, electronic key ignition, ambidextrous wig-wag throttle, speed control, horn, and battery indicator.
- Safety: Automatic braking, speed reduction in turns (front steering sensor), auto-stop, anti-rollback, LED lights, anti-tip wheels.

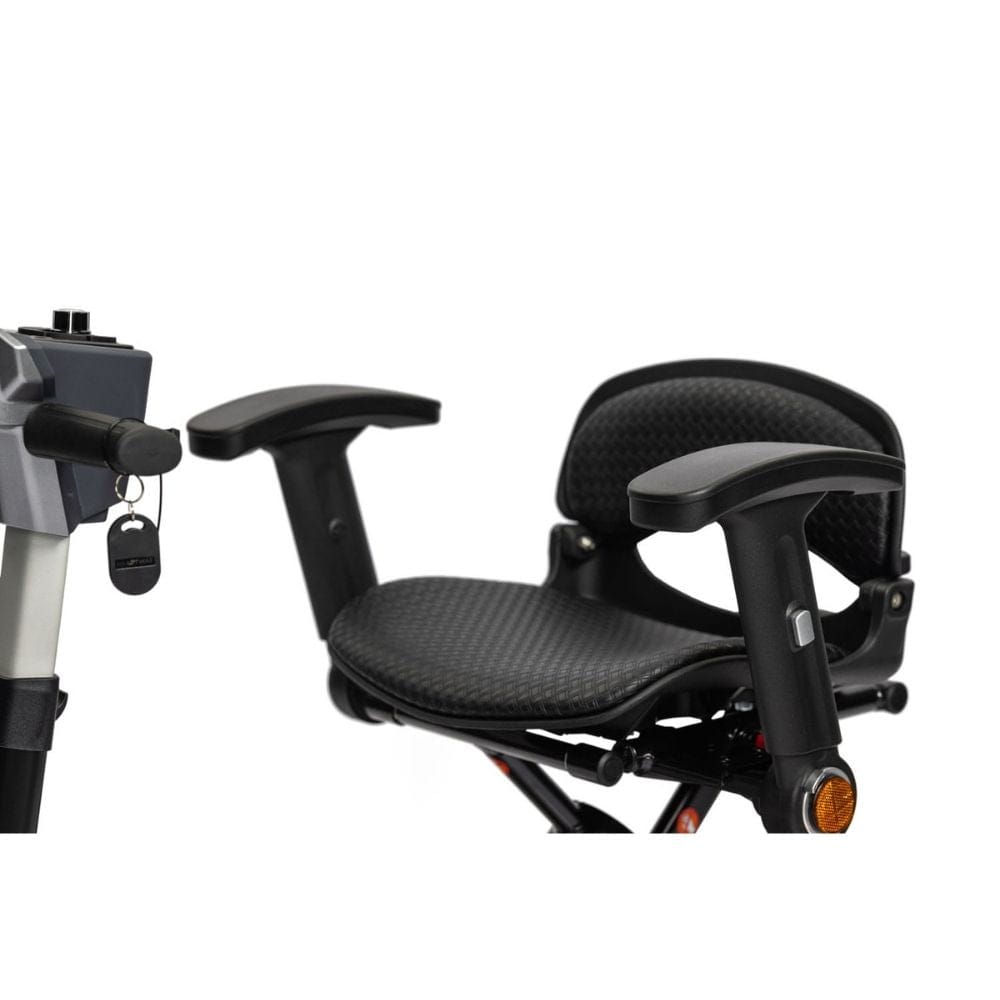

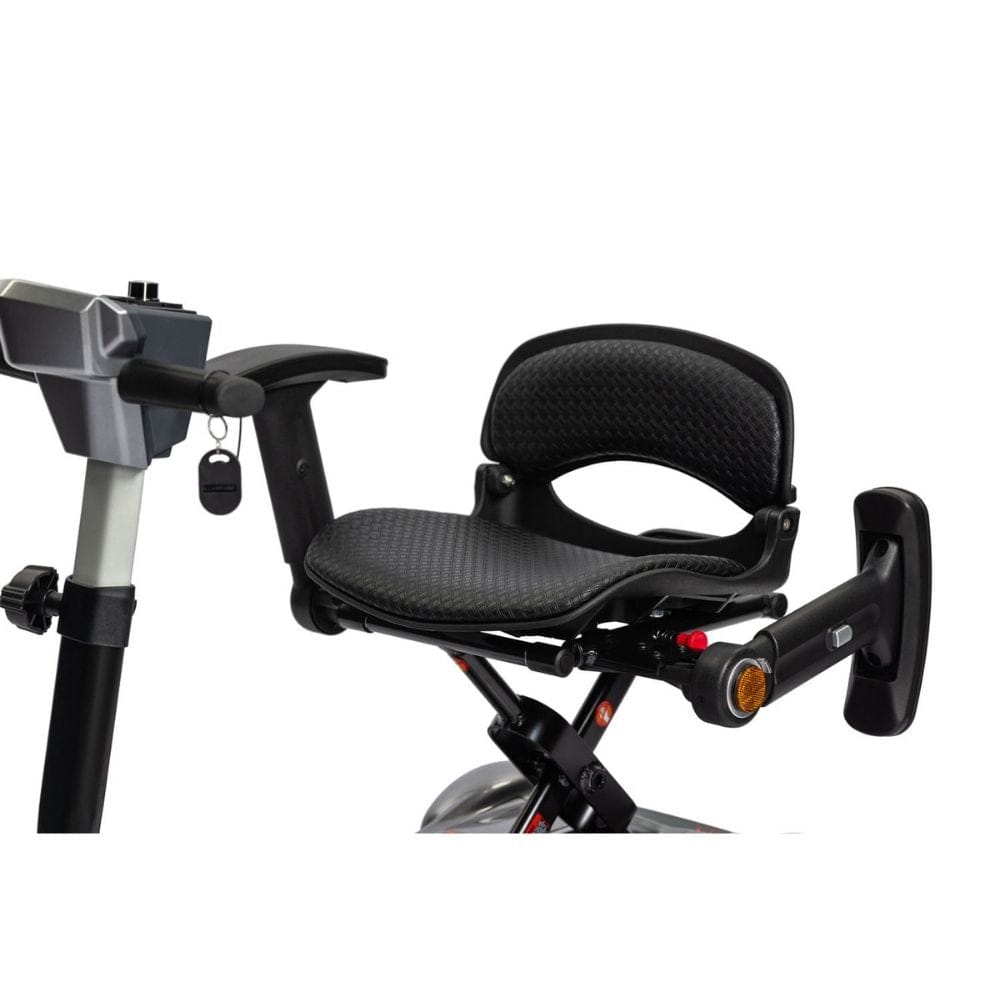

- Comfort: Adjustable tiller, optional armrests, cushioned seat.
- Weight Capacity: Up to 250 lbs.
- Weight: Around 55 lbs (scooter only).
- Speed: Up to 3.7 mph.
- Tires: Solid, non-flat tires.
-

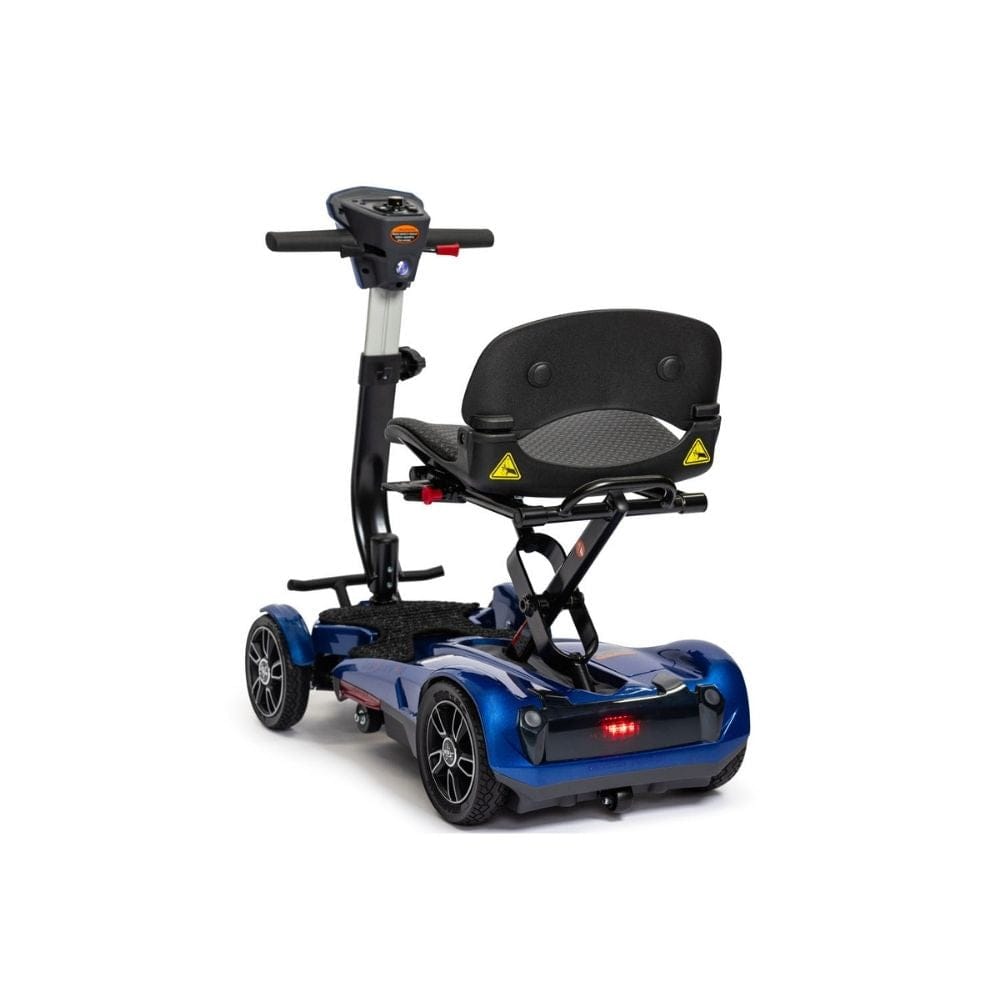

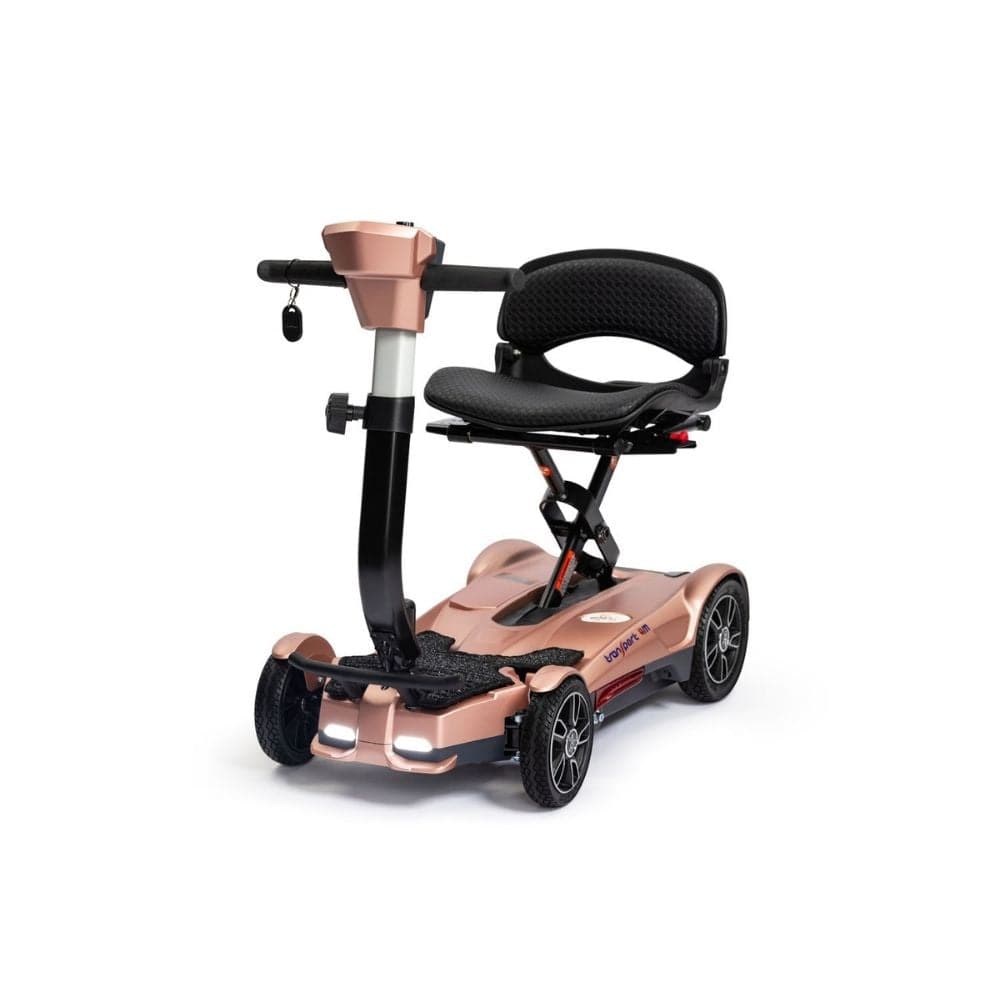

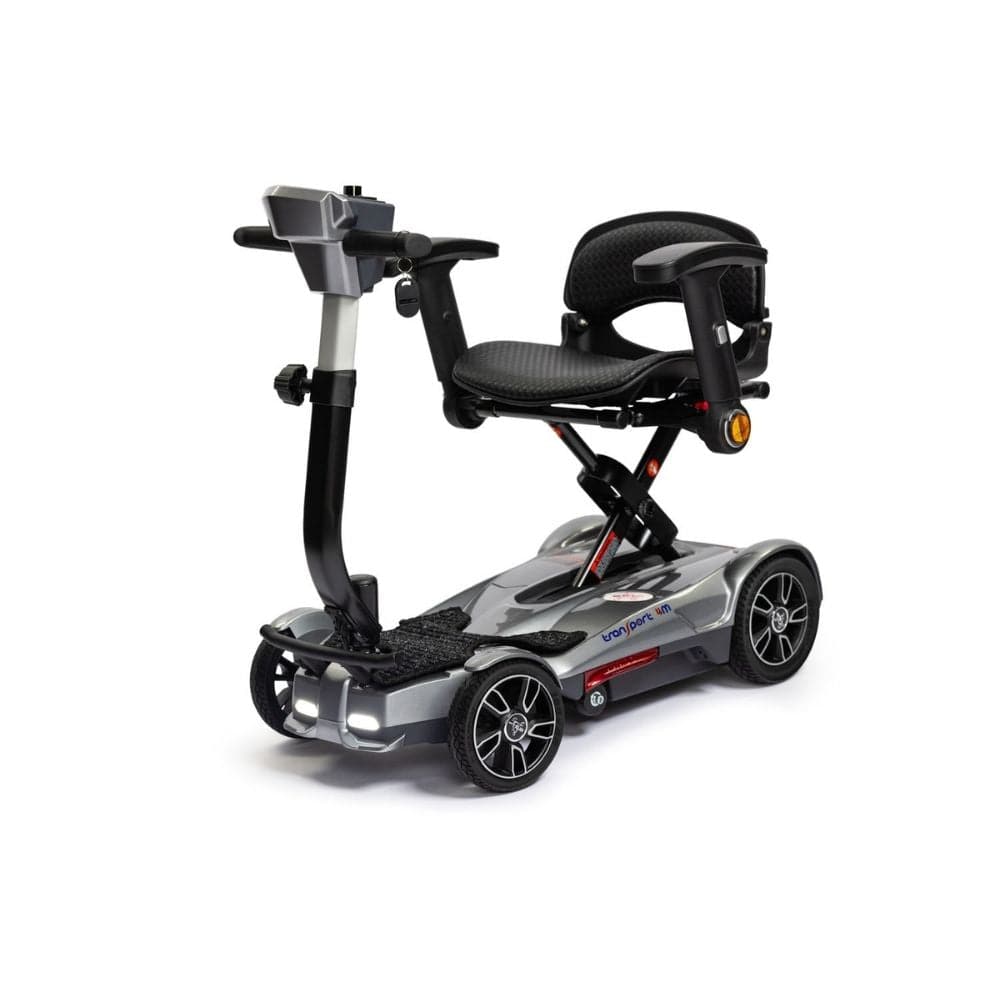

Colors: Available in Red, Blue, Silver, Rose Gold.
Specifications
- Overall Length: 33.5”in / 85cm
- Overall Width: 23” in / 58.5cm
- Overall Height (at Maximum Tiller Height): 33.5”in / 85cm
- Overall Height – at Minimum Tiller Height: 30” in / 76cm
- Legroom – Floorboard Length x Width: 17″ in / 43 cm
- Deck Height – Floorboard to Floor: 5.9″ in / 15 cm
- Ground Clearance: 1.4″ / 3.6 cm
- Turning Radius: 39.3” in / 100cm
- Weight with Std.: 55 lbs / 25kgs
- Weight without Batteries: 51.8 lbs / 23.5kgs
- Seat Type: Folding Mobility Seat
- Seat – Width & Depth & Height: 15″ W x 12″ D x 9″H / 38 cm x 30.5 cm x 23 cm
- Seat – Cushion Thickness: 1″ in / 2.5 cm
- Seat Height – Cushion to Deck: 15″ in / 38 cm
- Seat Height – Cushion to Floor: 19.7″ in / 50 cm
- Tire Type: Solid Tires
- Rim Type Rear: Industrial Plastic
- Rim Type Front: Industrial Plastic
- Outside Diameter Rear: 7.9″ / 20 cm
- Tire Width Rear: 2″ / 5 cm
- Outside Diameter Front: 7.08” in / 18cm
- Tire Width Front: 1.57” in / 4cm
- Battery Type & Power: 24V 10.05Ah Lithium Ion x1 (included)
- Brake System: Electromagnetic
- Climbing Angle – Maximum Recommended: 3°
- Charger Type: Off Board Li-Ion Charger
- 2 Amp 24 VDC, input: 100/240 Vac
- Charging Time: 4 – 6 hrs
- Controller: Dynamic R‐Series 50A
- *Driving Range: Up to 8 miles
- Load Capacity: 250 lbs / 115 kg
- Motor & Drive Location: 180 watt 24 volt
- Max Speed: 4 Miles/Hr/ 6KM/H
- *Speed – Maximum: up to 3.7 mph
- Colors: Blue, Silver, Rose Gold, Red
- Tiller Type: T-Shape Type
- Throttle Control Type: Pot Meter
- Anti-Tipper Wheels-Rear: Rear Casters – Standard
